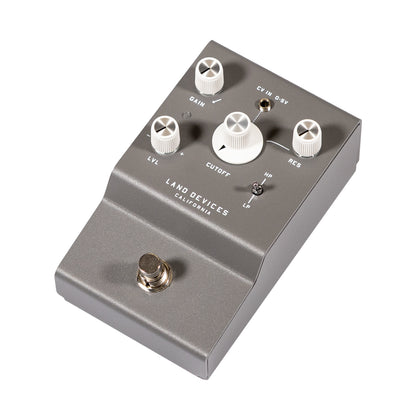

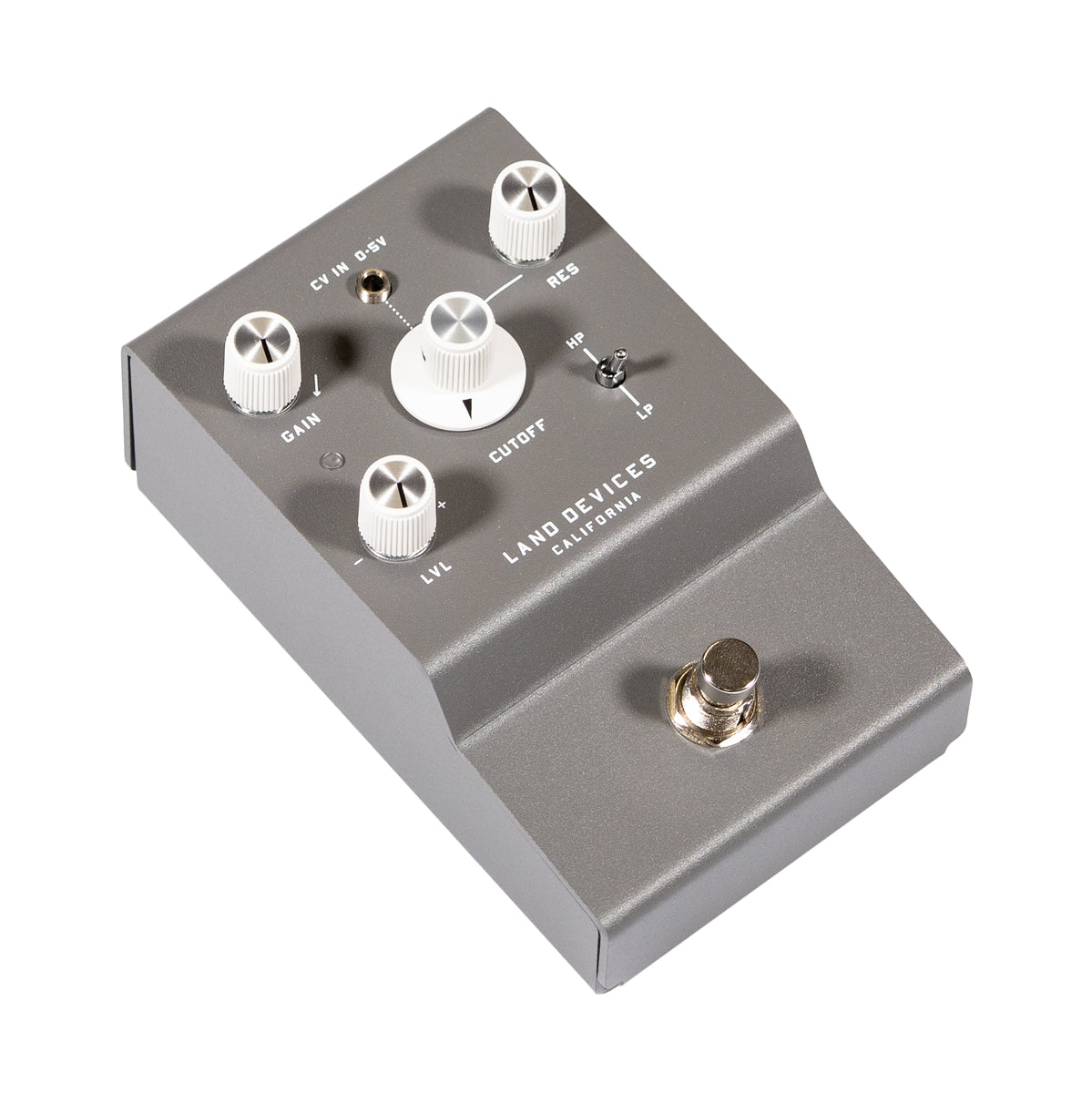

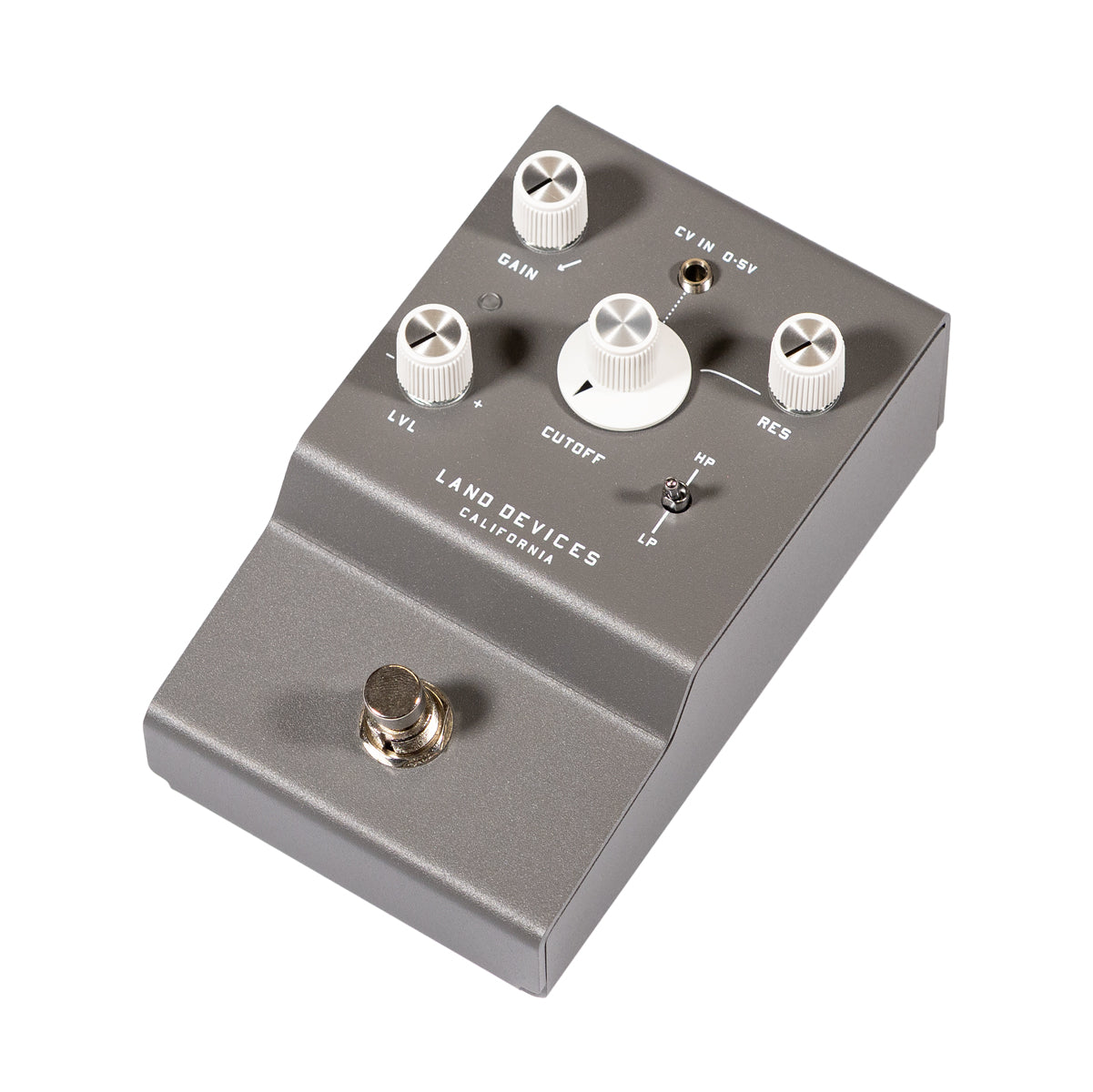

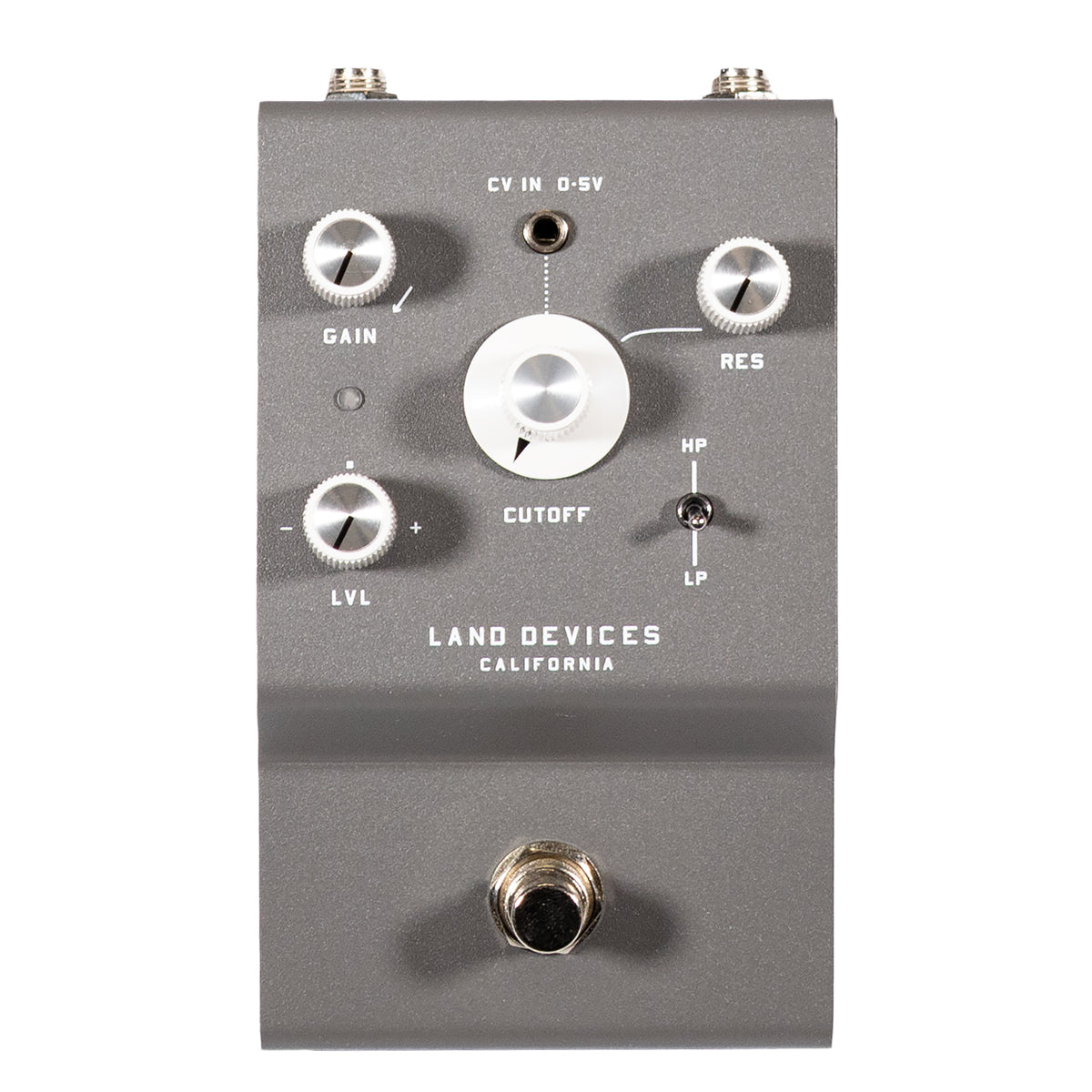

Land Devices Moonbow HPF/LPF + Overdrive

The Land Devices Moonbow is a versatile overdrive and filter pedal designed for players who want both tonal control and expressive character. Developed from the Compact Mixer, it combines a dual-mode voltage-controlled filter with a high-gain channel strip, allowing gentle compression, resonant filtering, or bold overdrive depending on how it’s driven. Its flexible controls make it suitable for both instrument and line-level signals, making it a highly adaptable tool for guitars, synths, or other instruments.

Gain adjusts the amount of overdrive, while LVL sets the overall output. CUTOFF controls the filter frequency from 20Hz to 5kHz, and RES adjusts resonance—pushing it past seventy percent produces strong oscillations for creative sound design. A HP/LP toggle switch selects between high-pass and low-pass filter modes, and a CV IN allows external control over the CUTOFF frequency. The Moonbow gives you precise command over both drive and tonal shaping in a compact, intuitive package.

All Land Devices pedals are handmade in Long Beach, California, offering boutique-quality construction, attention to detail, and consistent performance.

No.Tom Guitars are pleased to offer Land Devices as their exclusive London retailer.

Features

• Gain control adjustable from -13dB to +20dB for overdrive intensity

• LVL knob for output volume control

• CUTOFF knob to adjust filter frequency range

• RES knob to control filter resonance

• HP/LP toggle for high-pass or low-pass filter selection

• CV IN for external control of CUTOFF, with true bypass and relay switching

Specs

• Dimensions: 137mm x 80mm x 67mm

• Input impedance: 500kΩ

• Output impedance: 1kΩ

• True bypass with relay switching

• 1/4" mono jacks for I/O

• 3.5mm mono jack for CV input
