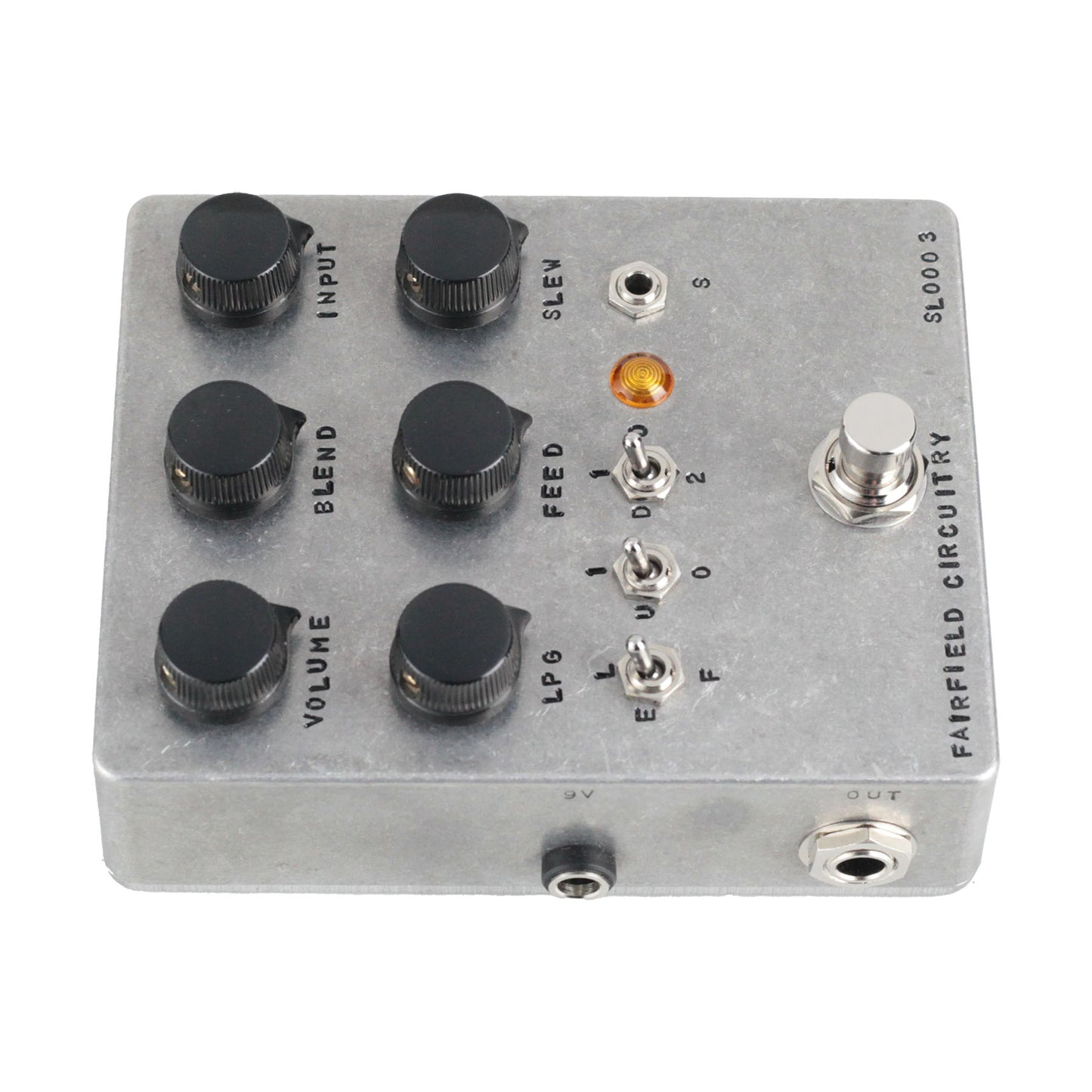

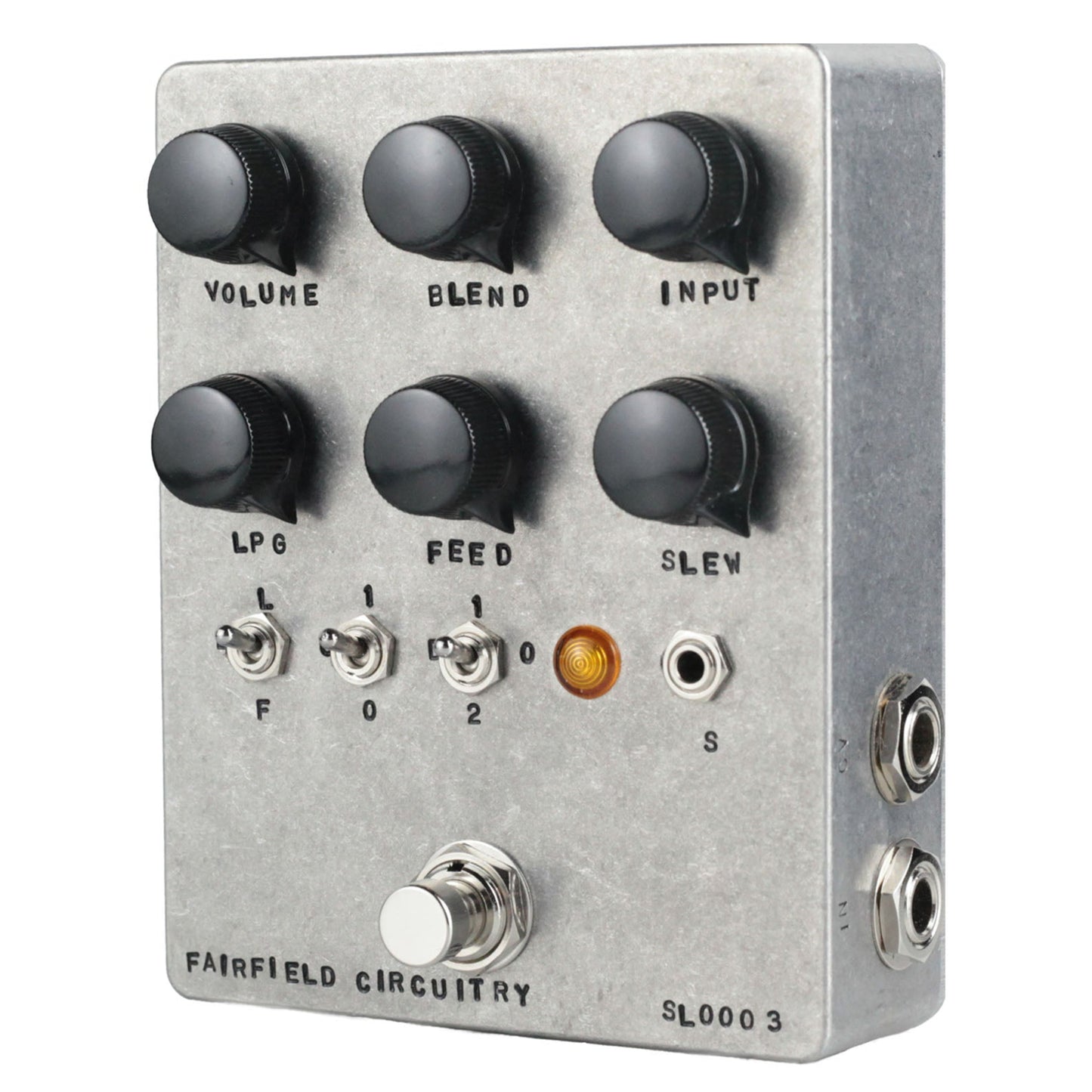

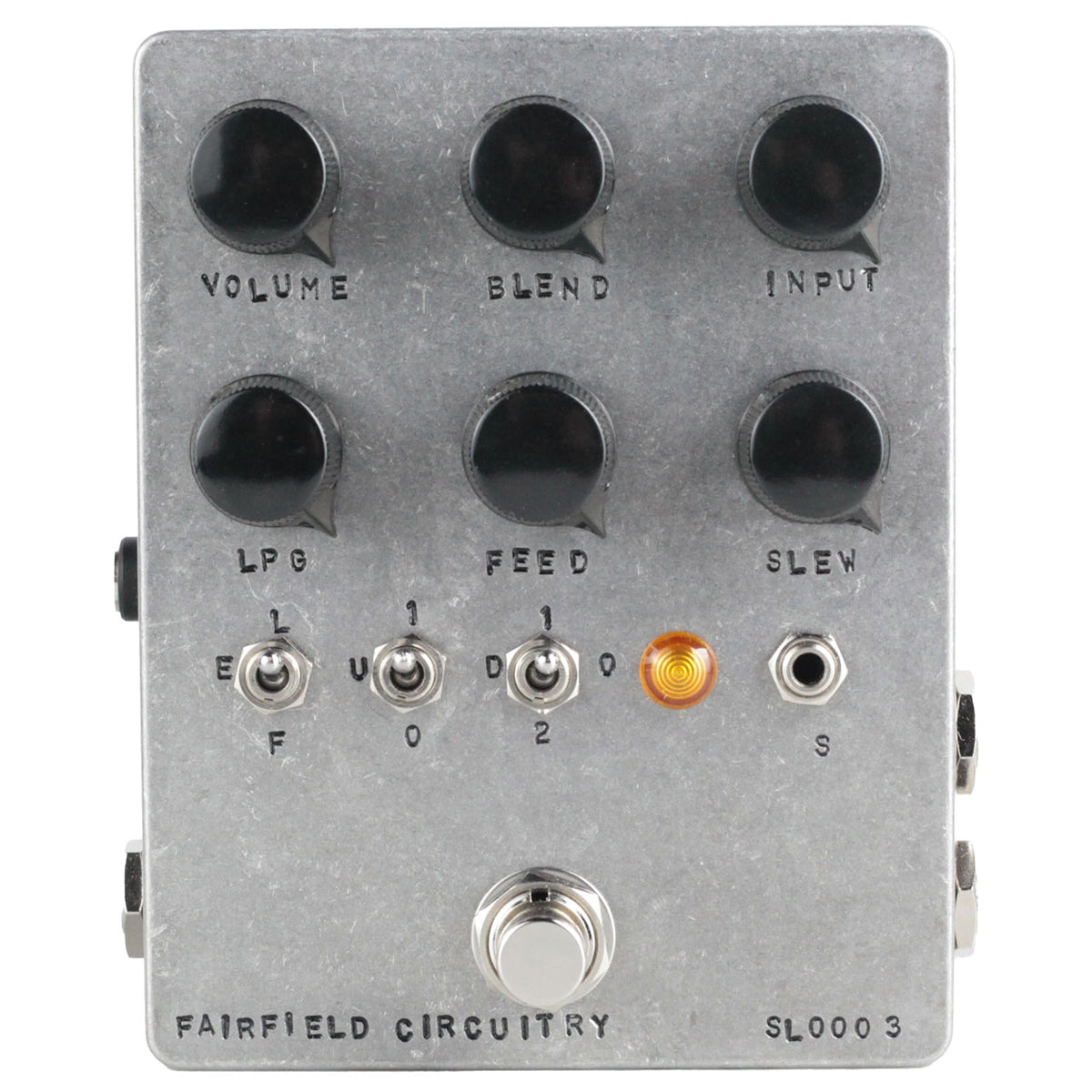

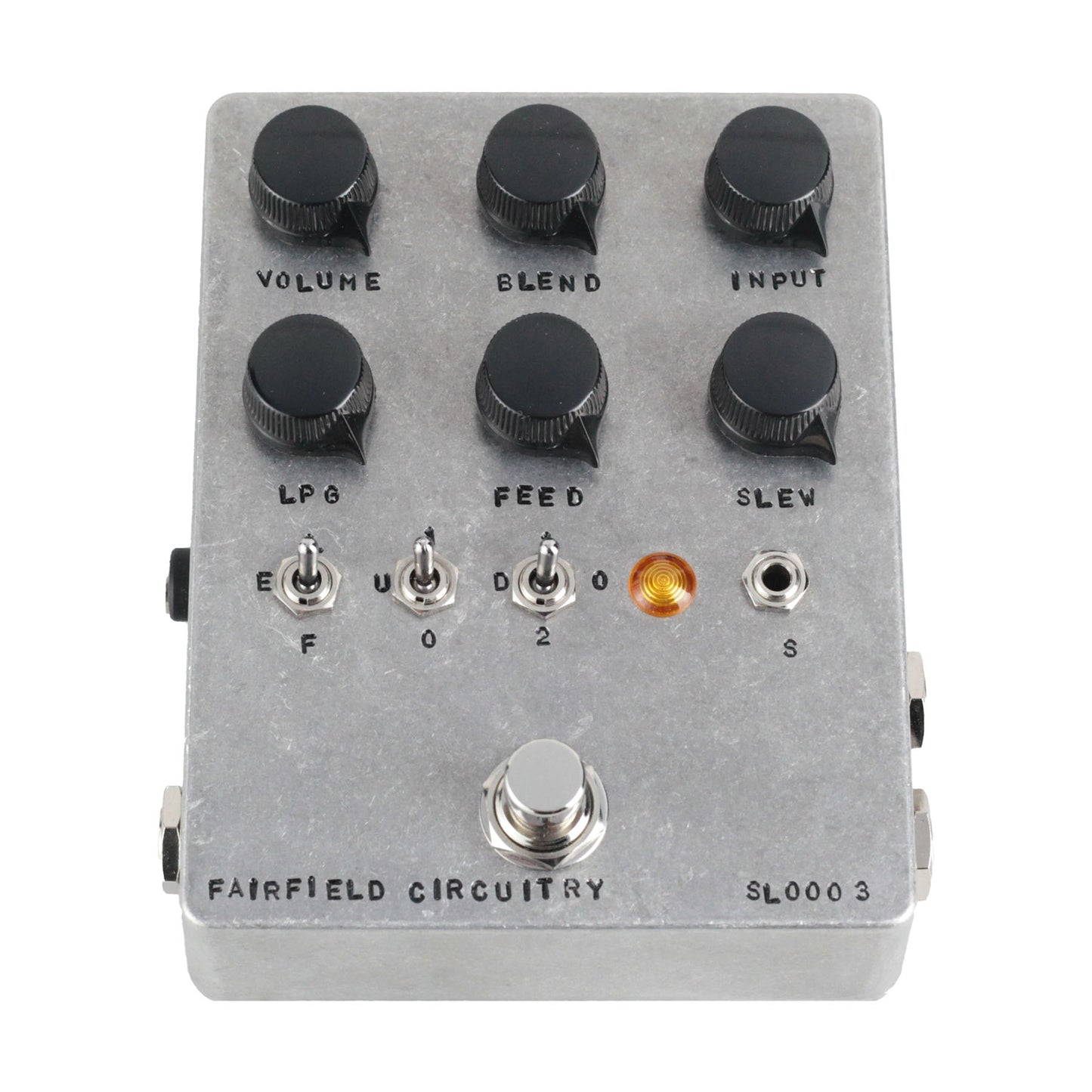

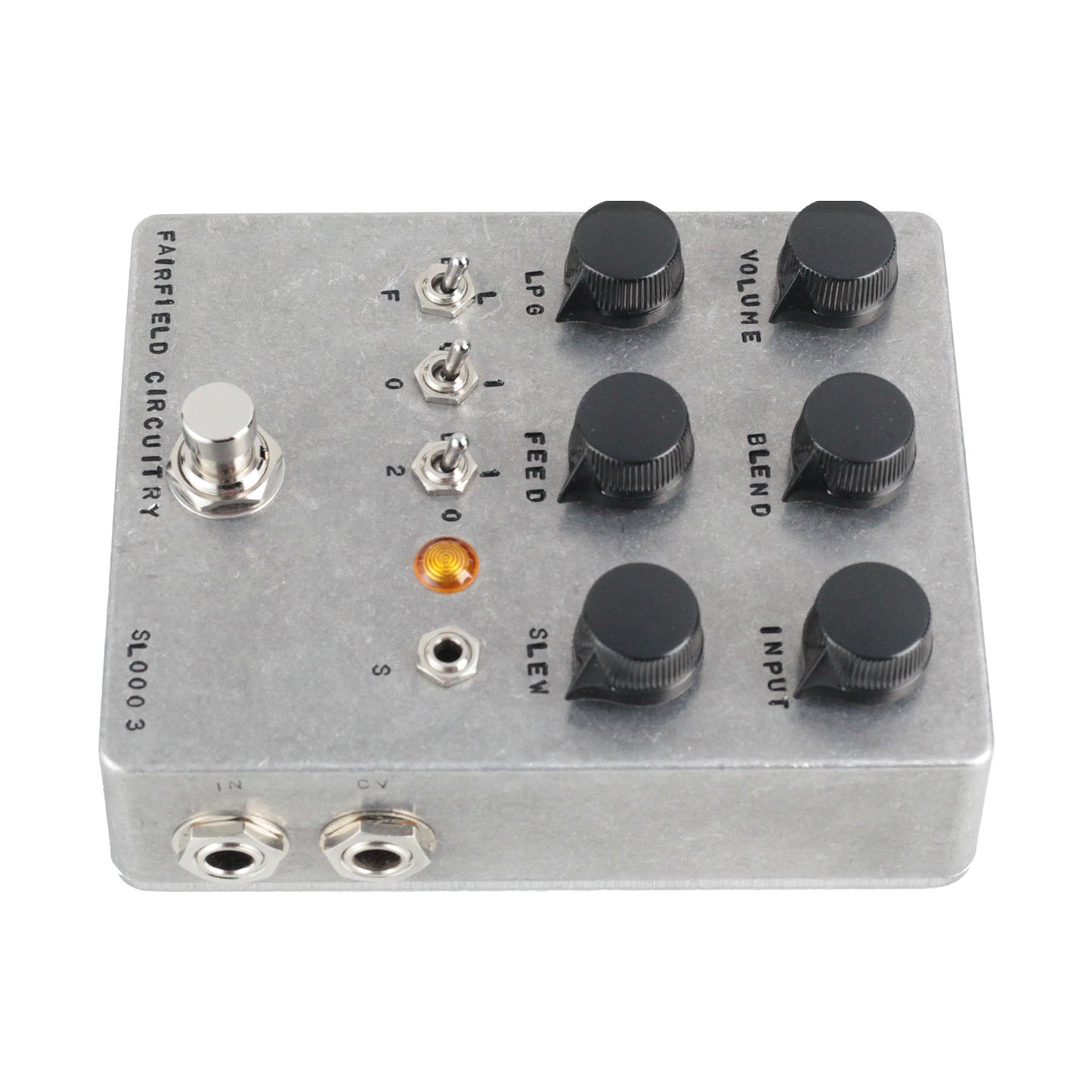

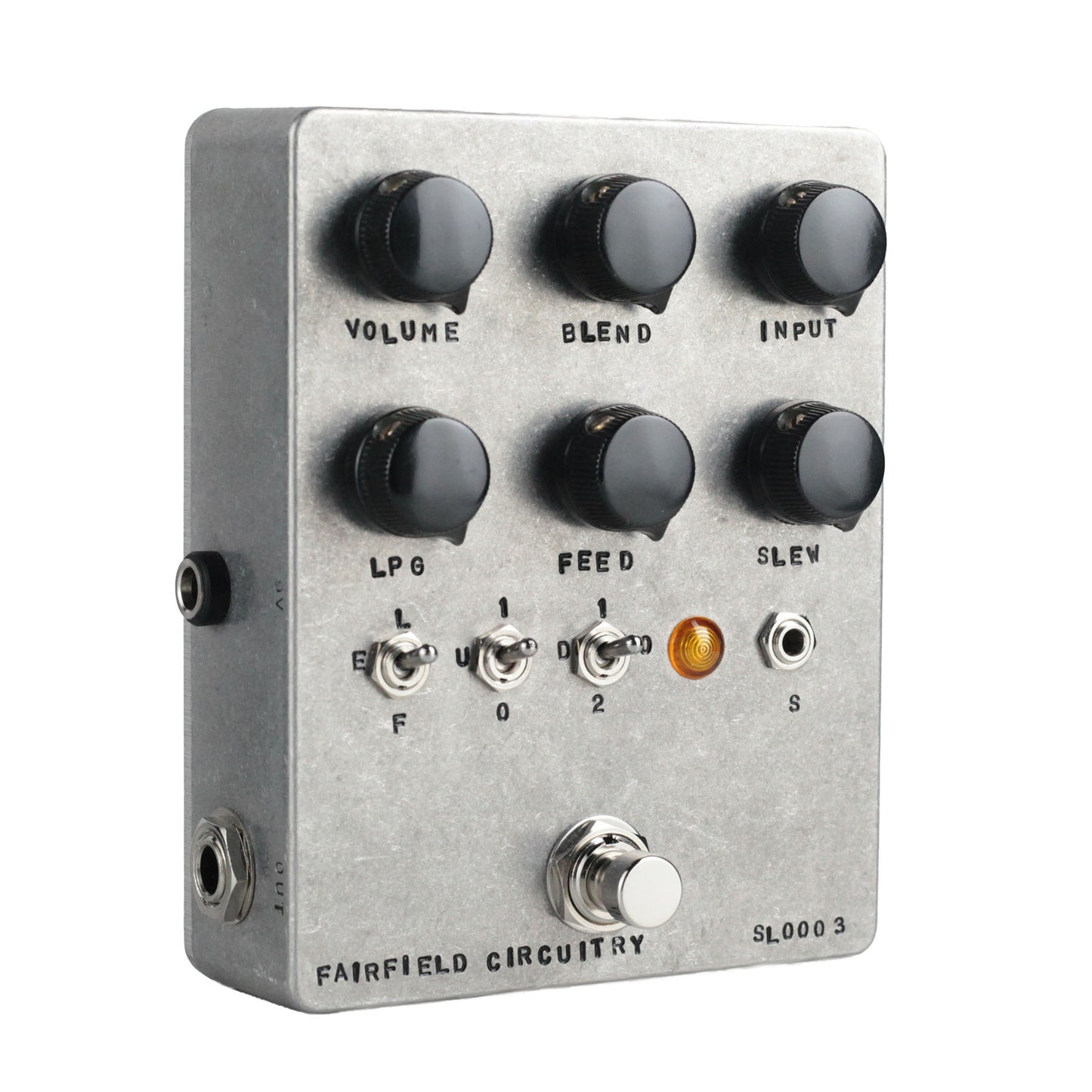

The Fairfield Circuitry 20% More pedal is an innovative sonic tool that blends slew limiting, envelope following, sub-octave generation, and wave shaping to create rich, dynamic textures. Inspired by a mysterious oscillator schematic, this unique circuit delivers everything from distorted low-pass filtering to self-oscillating feedback and percussive, west coast-style gating.
At its core, a slew limiter smooths voltage changes, acting as a resonant, somewhat distorted low-pass filter. When pushed into self-oscillation, it produces triangle waveforms that interact with your input signal, generating pseudo-wavefolding and synthetic distortion artifacts. A low-pass gate (LPG) adds warmth and resonance, while an internal envelope follower dynamically shapes feedback and filtering based on your playing intensity.
The sub-octave circuit delivers thick, harmonically rich tones by routing the squared signal through clock dividers. Additionally, a full-wave rectifier provides a switchable octave-up effect, adding aggressive upper harmonics when driven hard.
Designed for deep sonic experimentation, the Fairfield Circuitry 20% More invites you to explore new harmonic landscapes with intuitive interactions and responsive controls.
Key Features:
-
Slew Limiter Core – Resonant filtering, pseudo-wavefolding, and dynamic distortion
-
Low-Pass Gate – Adds warmth and reins in high-frequency artifacts
-
Envelope Follower – Shapes feedback and filtering based on dynamics
-
Sub-Octave Generator – -1 and -2 octave options via clock division
-
Full-Wave Rectifier – Analog octave-up effect for extra harmonics
-
Interactive Controls – Blend, slew, feedback, LPG, octave shifting, and more
